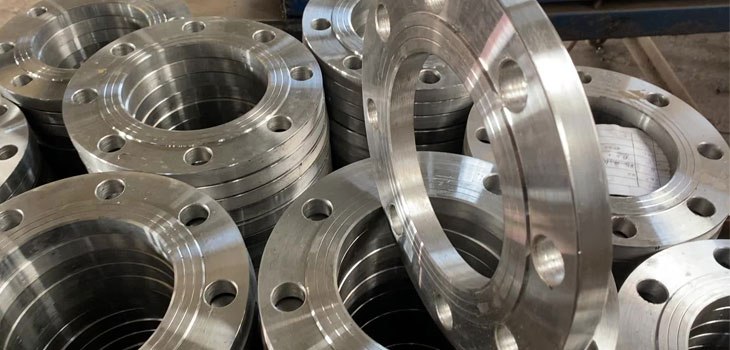

Flanges

Flanges are integral components used in piping systems to connect pipes, valves, pumps, and other equipment. They provide a means of joining different sections of pipes or equipment together, allowing for easy assembly, disassembly, and maintenance. Flanges are designed to create a secure and leak-proof connection between two or more components.

Flanges are available in a wide range of materials to suit different applications and operating conditions. Common materials include carbon steel, stainless steel, alloy steel, and various exotic alloys such as Inconel, Hastelloy, and Monel. The material selection depends on factors such as the fluid or gas being transported, temperature, pressure, and corrosion resistance requirements.

Flanges play a crucial role in the integrity and performance of piping systems, providing a secure and leak-free connection. The selection of the appropriate type of flange depends on factors such as the piping system's requirements, operating conditions, and the materials being transported.

Specifications for Flanges

Size: 1/4" NB TO 24" NB (ABOVE AS PER CUSTOMER REQUIREMENT)
Class 150#, 300#, 600#, 900#, 1500#, 2500#.
Standard SORF, SOFF, SOLJ, SWFF, WNRF, WNFF, WNRTJ, LWNRF, BLRF, BLFF, BLRTJ, SWRF, LAP Joint, Threaded, Reducing, Spectacle, Orifice & Studding Outlet are manufactured according to ANSI B 16.5, B 16.47 Series A (MSS SP-44), B 16.47 Series B (API 605), MSS SP-43, DIN 2527, DIN 2566, DIN 2576, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2642, BS 10, IS 1538 & IS 6392, JIS Flanges etc.
Types of Flanges Weld neck Flanges (WNRF), Slip-on Flanges (SORF), Blind Flanges (BLRF), Lap Joint Flanges, (SOLJ), Socket-weld Flanges (SWRF), Screwed (Threaded) Flanges, Long weld neck Flanges (LWNRF), Spectacle Blind Flanges, Spacer & Blind Flanges, Ring Type Joint Flanges (RTJ), Reducing Flanges, Raised Face (RF) Flanges, Orifice Flanges, Deck Flange, Large Diameter Flanges, Custom Flanges, Drawing Flanges, Forged Flanges, Plate Flanges, Flat Face Flanges, etc.
Flange Dimension Standard ANSI B16.5 (150# to 2500#), ANSI B16.47 (Series A/B, 75# to 900#), EN 1092-1 (PN 6, 10, 16, 25, 40), DIN Standard, UNI Standard, API 6A Standard, BS 10 (Table A, D, E, F, H, J, K, R, S, T), JIS B2220 (5K, 10K, 16K, 20K, 30K), MSS SP-44 Standard, AS 2129 (Table A, D, E, F, H, J, K, R, S, T), IS 6392 Standard.
Form Slip-On Flange (SO), Blind Flange (BL), Lap Joint Flange (LF), Socketweld Flange (SW), Weld Neck Flange (WN), Long Weld Neck Flange (LWN), Ring Type Joint (RTJ), Threaded Flange, Customized Flange with Raised Face (RF), Flat Face (FF).
